Block Types Editor View

Block Types Editor View
1

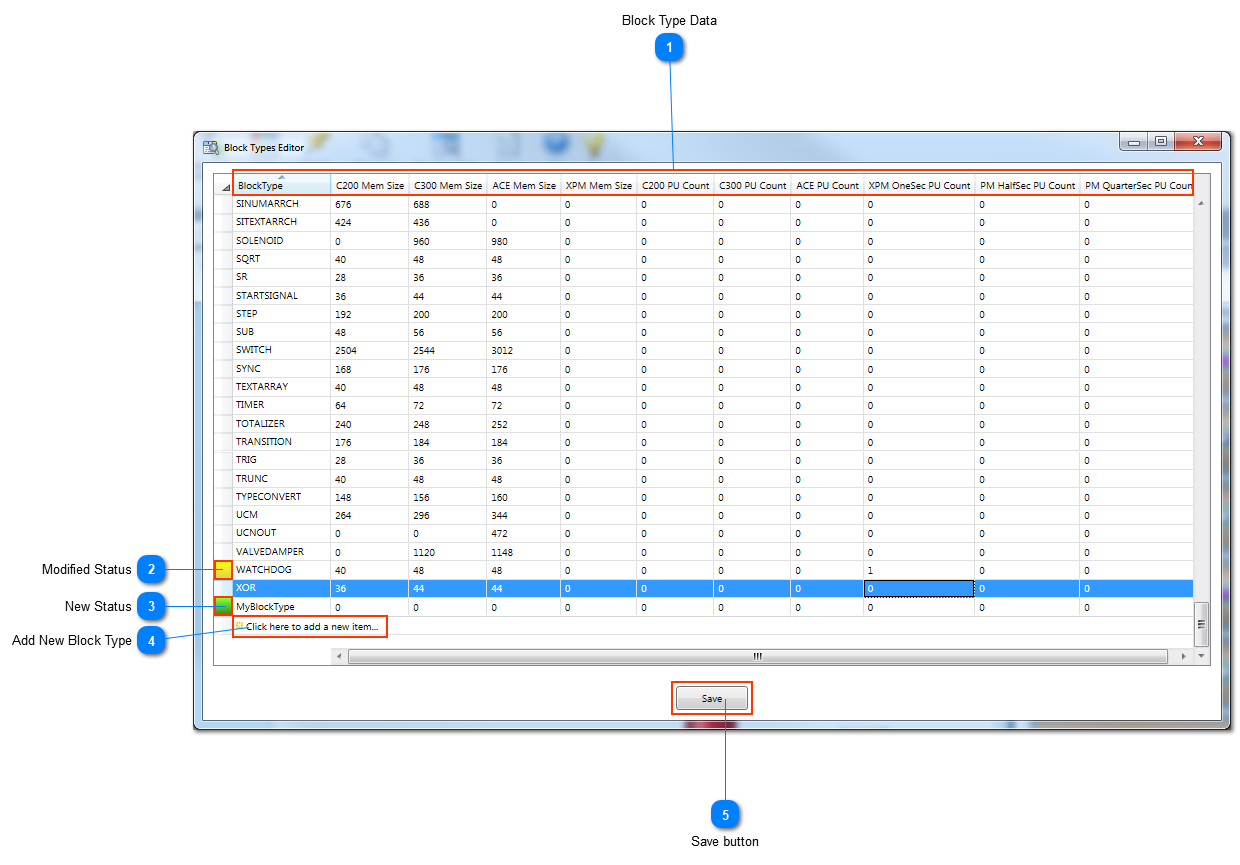

Block Type Data

1. Block Type Data
Shows the Block Type data that is available for calculating Memory Unit and Process Resource Unit utilization stats.  All data shown for Memory Unit sizes are listed as bytes.  A CEE type Memory Unit is defined as 1024 bytes/MU.  LCN Memory units are defined in bytes where 1 byte = 1 MU.
2

Modified Status

2. Modified Status
This row header indicator shows that this Block type has been modified.
3

New Status

3. New Status
This row header indicator shows that this Block type has been added as new.
4

Add New Block Type

4. Add New Block Type
Click here to add a new Block Type row.
5

Save button

5. Save button
Click this button to save all changes made to the Block types.
