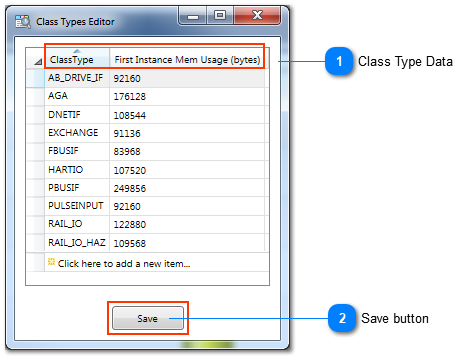

Class Types Editor View

Class Types Editor View
1

Class Type Data

1. Class Type Data
Shows the Class Type data that is available for calculating Memory units for first instance usage.  All data shown for Memory Unit sizes are listed as bytes.  A CEE type Memory Unit is defined as 1024 bytes/MU.

The first usage of a Block type from this class will consume an additional memory overhead as defined in this list.
2

Save button

2. Save button
Click this button to save all changes made to the Class types.
