Importing Honeywell EB, FSC, SCADA, and Triconex Point Data Sources
Overview
Control Architect supports the conversion of other non-PKS CEE type configuration such as Honeywell Exception Build (EB), FSC (SM), TriStation (TRICONEX), and SCADA Quick Builder to a compliant PKS Configuration standard. Control Architect uses the PKS CEE Configuration schema as the standard for all configuration views and tools.

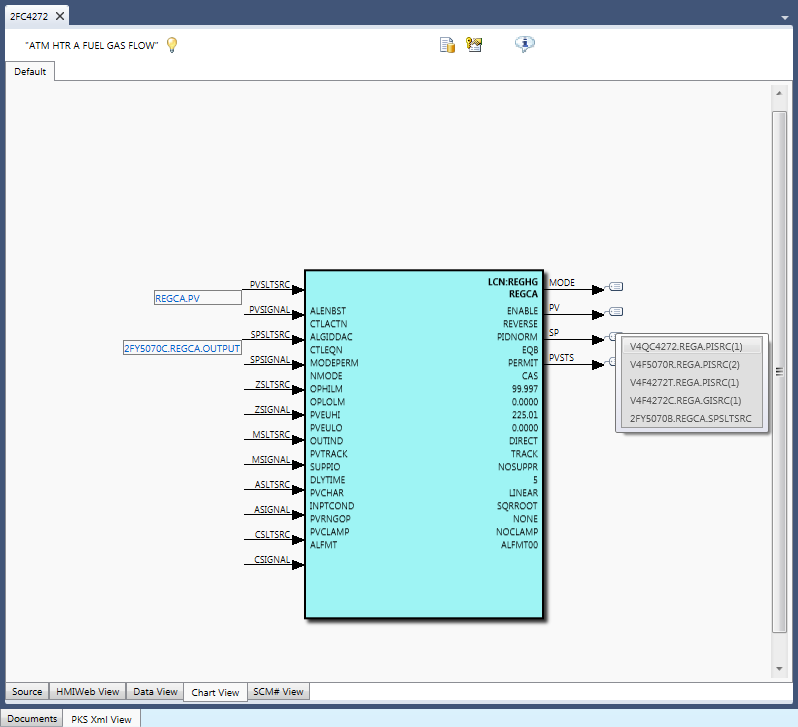

Entities parsed from EB or SCADA text export files are generated as a simple Control Module with a single embedded Function Block where the embedded block represents the original parsed Entity as in the example below. Block styles and attributes are configurable on a Template or Point type basis. Exported LCN Schematic DX debug text files can be imported to provide graphic Entity reference data in the HMIWeb Data view. Image files can also be imported together with the DX text files to associate a capture graphic image for display within the HMIWeb Data view.

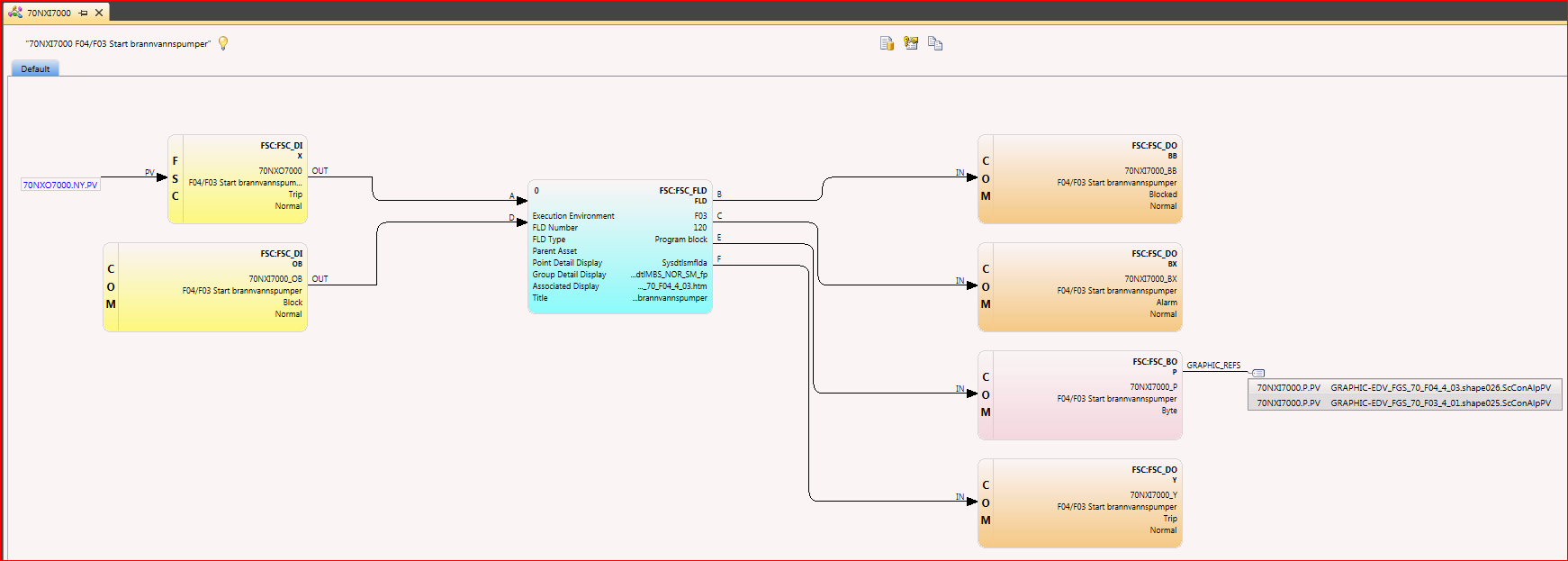

FSC Excel exports are generated as a FLD Control Module with COM and FSC blocks shown as embedded Input/Output blocks.
FSC importing supports CDA connection references to existing C300 CEE Control Modules and also FSC to FSC Controller peer connections. HMIWeb graphic references resolve to the FSC FLD block parameters.
LCN xPM
FSC (SM) CDA Integration
Import Configuration Files

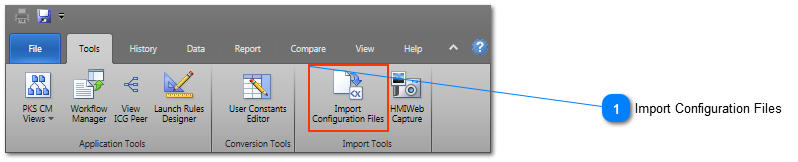

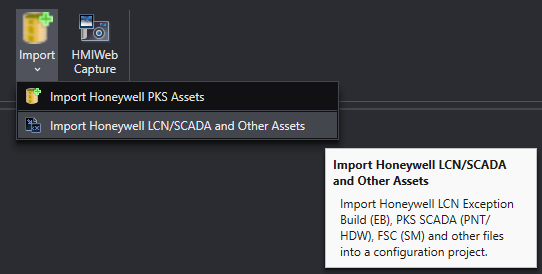

Click this Toolbar drop-down button to launch the tool for importing LCN, PKS SCADA, Triconex, and FSC configuration file based data.
